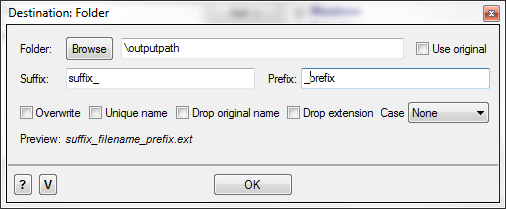

in the settings for delivery into a folder, the labels for suffix and prefix are swapped.
Normally the suffix comes after the name and the prefix is before the name.
- delivery.png (15.8 KiB) Viewed 10639 times
Thanks,
bephop
Delivery to Folder: Labels for suffix and prefix swapped
Delivery to Folder: Labels for suffix and prefix swapped
Hi,
in the settings for delivery into a folder, the labels for suffix and prefix are swapped.
Normally the suffix comes after the name and the prefix is before the name.
Thanks,
bephop
in the settings for delivery into a folder, the labels for suffix and prefix are swapped.
Normally the suffix comes after the name and the prefix is before the name.
Thanks,
bephop
Re: Delivery to Folder: Labels for suffix and prefix swapped
Hi bephop and thank you for using FFAStrans and thank you for reporting this stupid mistake
It will of course be fixed in the next release.
-steipal
It will of course be fixed in the next release.
-steipal
Re: Delivery to Folder: Labels for suffix and prefix swapped
Hi steipal,
thank you. And many thanks for programming this very cool tool! I think it's the best watchfolder tool for ffmpeg! Support for growing files and such a nice status monitor is very rare.
I recently used it for professional TV production, transcoding DNxHD to MP4 and vice versa. And the best: I used a serivce wrapper to install FFAStrans as a background service. But you can still open a second instance of FFAStrans to change the configuration. And those changes take instantly effect on the background service.
Maybe you can think about an "install as a service" button
I just had to use a custom ffmpeg command because your DNxHD preset doesn't fit to our requirements.
thank you. And many thanks for programming this very cool tool! I think it's the best watchfolder tool for ffmpeg! Support for growing files and such a nice status monitor is very rare.
I recently used it for professional TV production, transcoding DNxHD to MP4 and vice versa. And the best: I used a serivce wrapper to install FFAStrans as a background service. But you can still open a second instance of FFAStrans to change the configuration. And those changes take instantly effect on the background service.
Maybe you can think about an "install as a service" button
I just had to use a custom ffmpeg command because your DNxHD preset doesn't fit to our requirements.
Re: Delivery to Folder: Labels for suffix and prefix swapped
Hi bephop,
I'm very glad you like FFAStrans and that you find new ways of utilizing the program!
A service-option like you suggest will probably find its way into FFAStrans within a few versions but currently it's is not my top priority.
What are the options you're missing in the DNxHD encoder?
-steipal
I'm very glad you like FFAStrans and that you find new ways of utilizing the program!
A service-option like you suggest will probably find its way into FFAStrans within a few versions but currently it's is not my top priority.What are the options you're missing in the DNxHD encoder?
-steipal
Re: Delivery to Folder: Labels for suffix and prefix swapped
Hi steipal,
mainly its the audio part.
Your setup generates one audio stream with e.g. 8 channels in 16bit PCM. But our video server requieres 8 audio streams with one channel in 24bit PCM. Same if you only use 4 channels. Every channel has to be a single mono stream with 24bit encoding.
If the source file has only 2 channels, the other channels should be muted. So you have to map a mute audio source to those streams.
So if i want to transcode from a MP4 file (e.g. shot with a DSLR/GoPro, o a final movie, made for online content. or maybe a youtube video) the whole ffmpeg string looks like this:
ffmpeg -i input.mp4 -f lavfi -i aevalsrc=0 -vcodec dnxhd -vf scale=1920:1080 -b:v 120M -pix_fmt yuv422p -r 25 -flags +ildct+ilme -top 1 -dc 10 -qmax 20 -lmin "1*QP2LAMBDA" -rc_max_vbv_use 1 -rc_min_vbv_use 1 -maxrate 120M -bufsize 8000k -map_metadata 1 -acodec pcm_s24le -ar 48000 -ac 1 -map 0:v -map 0:1 -map_channel 0.1.0:0.1 -map 0:1 -map_channel 0.1.1:0.2 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -shortest -color_range 1 -color_primaries 1 -color_trc 1 -f mov output.mov
This includes color conversion, interlacing and audio mapping. The ouput file is compatible with an EVS video server.
Here is a media info of a sample video in DNxHD with 8 Channels:
-bephop
mainly its the audio part.
Your setup generates one audio stream with e.g. 8 channels in 16bit PCM. But our video server requieres 8 audio streams with one channel in 24bit PCM. Same if you only use 4 channels. Every channel has to be a single mono stream with 24bit encoding.
If the source file has only 2 channels, the other channels should be muted. So you have to map a mute audio source to those streams.
So if i want to transcode from a MP4 file (e.g. shot with a DSLR/GoPro, o a final movie, made for online content. or maybe a youtube video) the whole ffmpeg string looks like this:
ffmpeg -i input.mp4 -f lavfi -i aevalsrc=0 -vcodec dnxhd -vf scale=1920:1080 -b:v 120M -pix_fmt yuv422p -r 25 -flags +ildct+ilme -top 1 -dc 10 -qmax 20 -lmin "1*QP2LAMBDA" -rc_max_vbv_use 1 -rc_min_vbv_use 1 -maxrate 120M -bufsize 8000k -map_metadata 1 -acodec pcm_s24le -ar 48000 -ac 1 -map 0:v -map 0:1 -map_channel 0.1.0:0.1 -map 0:1 -map_channel 0.1.1:0.2 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -map 1:0 -shortest -color_range 1 -color_primaries 1 -color_trc 1 -f mov output.mov
This includes color conversion, interlacing and audio mapping. The ouput file is compatible with an EVS video server.
Here is a media info of a sample video in DNxHD with 8 Channels:
Code: Select all
General
Complete name : C:\Offline\FFmpeg\input\dnxtest.mxf
Format : MXF
Commercial name : DNxHD 120
Format version : 1.3
Format profile : OP-1a
Format settings : Closed / Complete
File size : 934 MiB
Duration : 1mn 0s
Overall bit rate : 131 Mbps
Encoded date : 2015-05-27 12:40:37.112
Writing application : OpenCube MXFTk Advanced 2.7.0.0.1
Writing library : Microsoft Windows 7 Professional Service Pack 1 (Build 7601) 2.7.0.0.1
Video
ID : 2
Format : VC-3
Commercial name : DNxHD 120
Format version : Version 1
Format settings, wrapping mode : Frame
Codec ID : 0D01030102110100-0401020271080000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 121 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:2
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Top Field First
Bits/(Pixel*Frame) : 2.339
Stream size : 867 MiB (93%)
Title : Picture
Audio #1
ID : 3
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #2
ID : 4
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #3
ID : 5
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #4
ID : 6
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #5
ID : 7
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #6
ID : 8
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #7
ID : 9
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Audio #8
ID : 10
Format : PCM
Format settings, Endianness : Little
Format settings, wrapping mode : Frame (AES)
Codec ID : 0D01030102060300-040202017F000000
Duration : 1mn 0s
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 8.24 MiB (1%)
Title : Sound
Other #1
ID : 1-Material
Type : Time code
Format : MXF TC
Time code of first frame : 10:00:00:00
Time code settings : Material Package
Time code, striped : Yes
Other #2
ID : 1-Source
Type : Time code
Format : MXF TC
Time code of first frame : 10:00:00:00
Time code settings : Source Package
Time code, striped : Yes
Other #3
Type : Time code
Format : SMPTE TC
Muxing mode : SDTI
Time code of first frame : 10:00:00:00-bephop
Re: Delivery to Folder: Labels for suffix and prefix swapped
In the future I will look at the option to choose between one stream mixed audio and separate mono streams on all built in broadcast encoders. Thanks for notifying
-steipal
